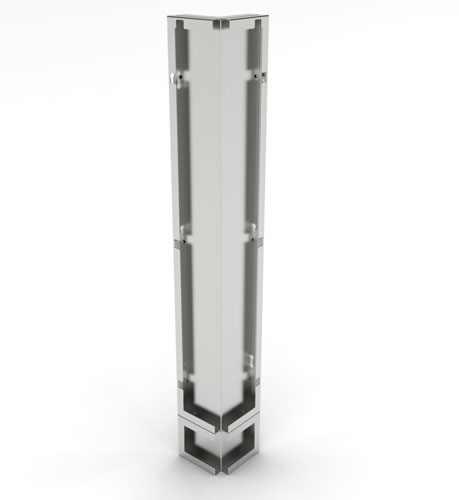

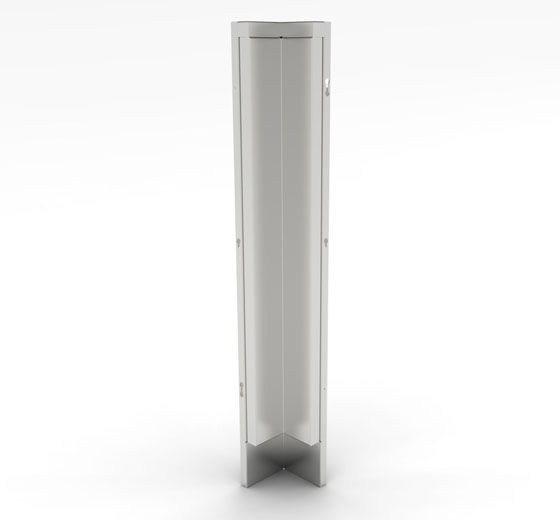

SPACER PANEL

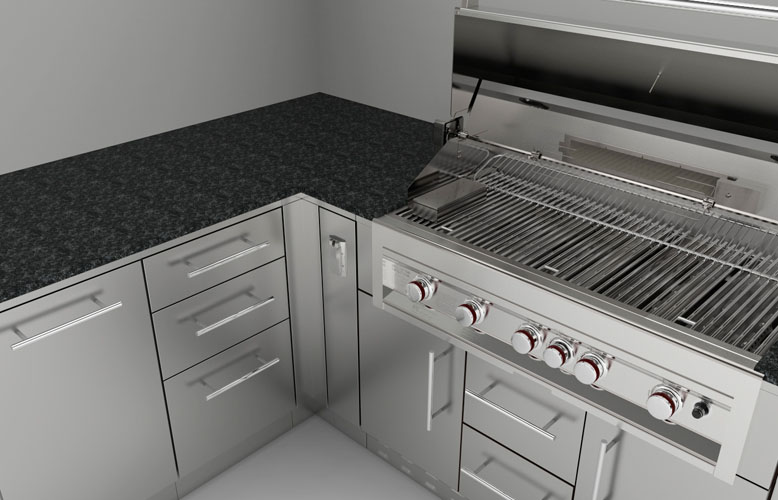

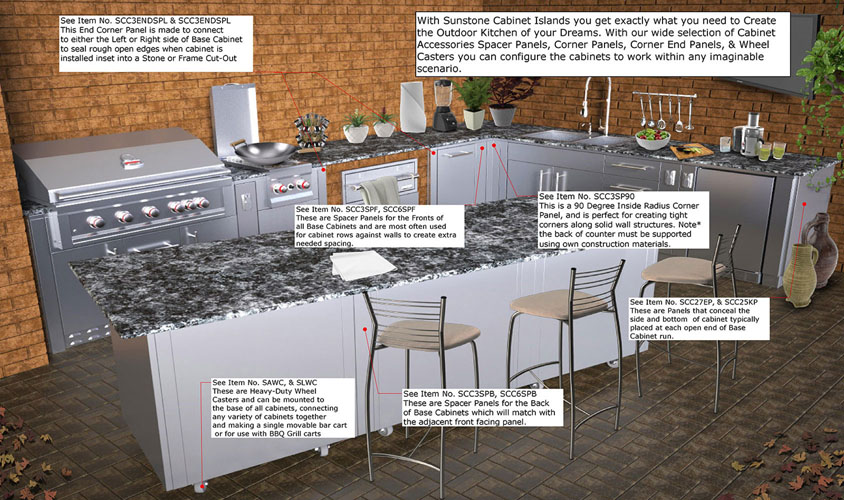

The 90º Angle Spacer Panel for Cabinets is designed to form a tight inside 90-degree corner in the cabinet island configuration and includes the kick plate. Constructed in 304 stainless steel with a brushed finish matching with all other Sunstone cabinets and products. It is easily installed with simple pin-locks aligning any two opposing cabinets 90-degrees to one another. Simply lift and drop the panel in between the two – pushing down to secure tight in position.

- 304 Stainless Steel Construction
- Includes Kick Plate & Counter Rail
- Removable Counter Rail for Bull-Nose Counter Edge
- Easy Pin-Lock Installation – No Tools Required





SCC3SP90 Specifications:

304 Stainless Steel
Dimensions (cm):
7.62 W x 7.62 W by 90 Degree Inside Radius x 77.47 H
Weight (kg): 3.62
Package Size (cm): 90 W x 14,5 L x 14,5 H
Weight (kg): 3,93

Download Cabinet Installation Manual
